Dometic
SKU/Product #: 312371103

711-M28 Gravity Toilet, Bone -Discontinued

$0.00
DISCONTINUED. See Description For Details

Product Description

DISCONTINUED!
They have redesigned this toilet to the 5000-M65 (large bowl) or the 700-M65 (small bowl)



Convenient Toilet and Holding Tank Combination: Available in White or Bone.

Complete self-contained freshwater system!!


The freshwater operation eliminates odors caused y dead organisms in your intake line commonly associated with raw water flush toilets.

The china bowl is rinsed with fresh water from your on-board demands system. When you step on the pedal it opens the water valve, which allows the pressurized water into the bowl.

The integral anti-siphon vacuum breaker protects your potable water supply from contamination.


With an effective rim flush action that only uses about a pint of fresh water per flush, you can conserve your water supply while guaranteeing efficiency.

  • Type: Self-contained manual
  • Material: China bowl / 9 gallon Polyethylene tank
  • Port Sizes: 1/2" (13mm) male NPT inlet, 1-1/2" discharge, 5/8" ven
  • Dimensions: 20"H x 18-7/8"W x 18-3/4"D
  • Warranty: One year

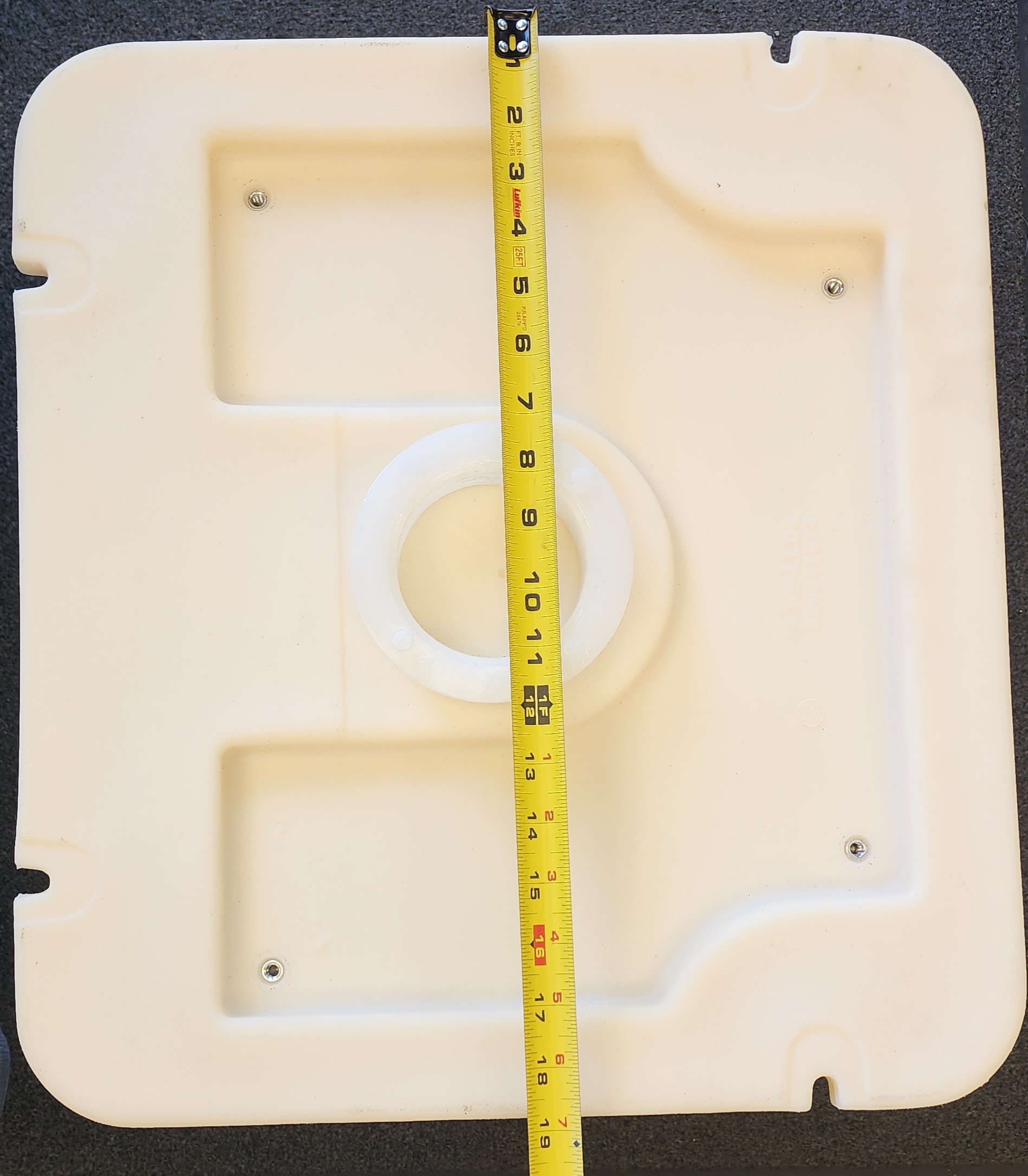

711-M28's are often used in gravity discharge applications. If you need a 3" FPT (female pipe thread) fitting put on the bottom of the tank, you can add that option in the drop down above before adding the toilet to your cart. There is only one spot the fitting can go in the center of the bottom of the tank, so there is no way to customize the placement.
