Raritan
SKU/Product #: 2500RK

Fresh Head Repair Kit

$44.80
$56.00
Shipping: Calculated at Checkout

Product Description

Raritan Fresh Head Repair Kit.

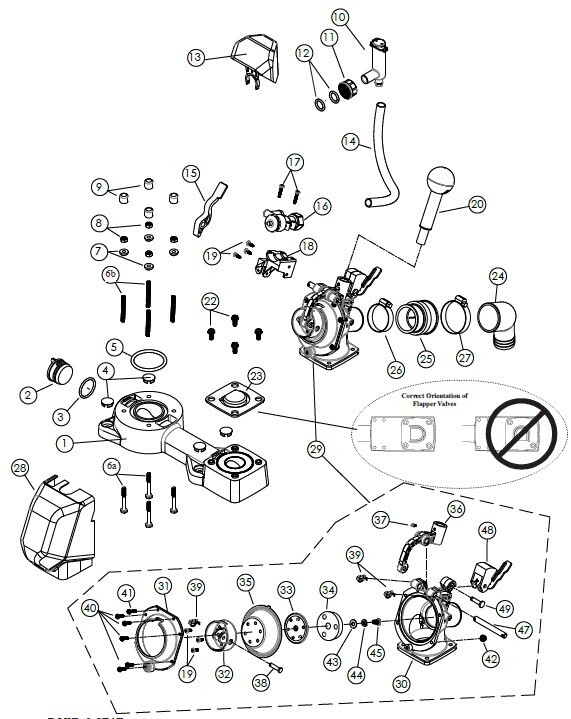

This kit includes:

#3. 25103- Base Drain Plug O-Ring Seal

#7. RNI- Nylon Shoulder Washer (4)

#9. VCAP- Vinyl Cap (4)

#12. 25310- BSP Nut: O Ring

#23. 1228F- Flapper Valve

#25. 25213- Joker Valve

#32. 25206- Discharge Shut Off Seal

#35. 227015- Diaphragm



Warning: This item may contain ingredients that are listed under P65warnings.ca.gov
