Product Description

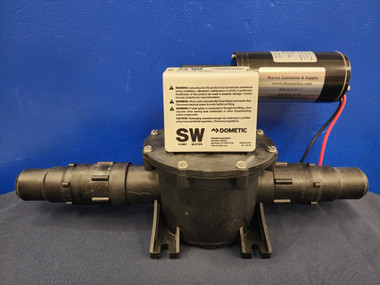

The inline Accumulation Tank is designed to be paired with the separate inline Vacuum Pump. These can be mounted in different locations. In order: Toilet - Accumulation Tank - Pump - Holding Tank
How The VacuFlush System Operates:
For more details: Get To Know Your System
1. Vacuum is maintained in the system at all times. Before use, the water level in the bowl can be raised by simply lifting the flush lever.
2. When the toilet is flushed by pushing down on the foot lever, the vacuum energy stored in the system is released. The change of pressure in the vacuum tank causes the integral pressure switch to activate the vacuum pump. The bowl is instantly cleared and the waste is moved through the vacuum pump, at 7 feet per second, and pushed to the holding tank.
3. After the flush lever is released, creating a vacuum tight seal at the toilet bowl, the vacuum pump continues to run until the vacuum level is recharged in the system. Recharging the vacuum takes about one minute, depending on how long your run is.
REQUIREMENTS:
| ELECTRICAL |
Vacuum pump* draw = 6amps/ 12 V DC; 3 amps/24 V DC Vacuum pump* circuit beaker/fuse = 10 amps/12 V DC: 5 amps/24 V DC |
| WATER SUPPLY |
ID = 0.5" NPT fitting Flow rate = 2.0 mpg/7.6 Imp at toilet, minimum |
| DISCHARGE |
ID = 1.5 in./38mm ID plumbing Horizontal run** = 50 ft./15m maximum to vacuum source Vertical run** = 6 ft./1.8m maximum to vacuum source |
| REQUIRED COMPONENT |
Vacuum source = VacuFlush Vacuum Generator, Vacuum Holding Tank, or Holding Tank System |

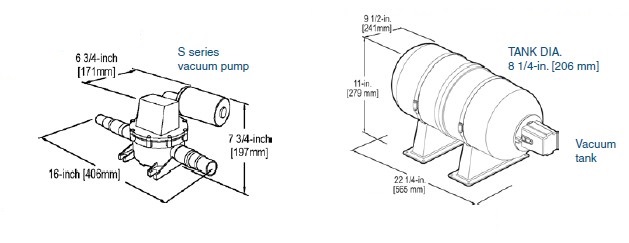

DIMENSIONS:
 |
