Dometic
SKU/Product #: 385310660

DIY Dip Tube Kit

$71.39
$83.99
Shipping: Calculated at Checkout

Product Description

The Dometic Holding Tank Discharge Diptube Kit is used to evacuate your holding tank via a Pump-out station from your Deck Plate or an Overboard Discharge Pump.

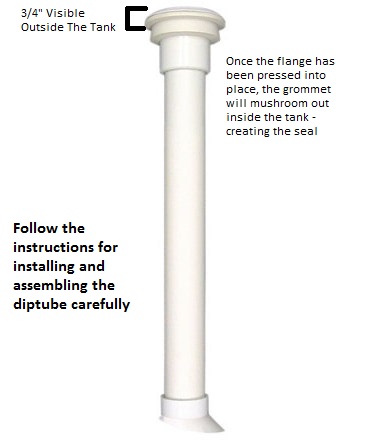

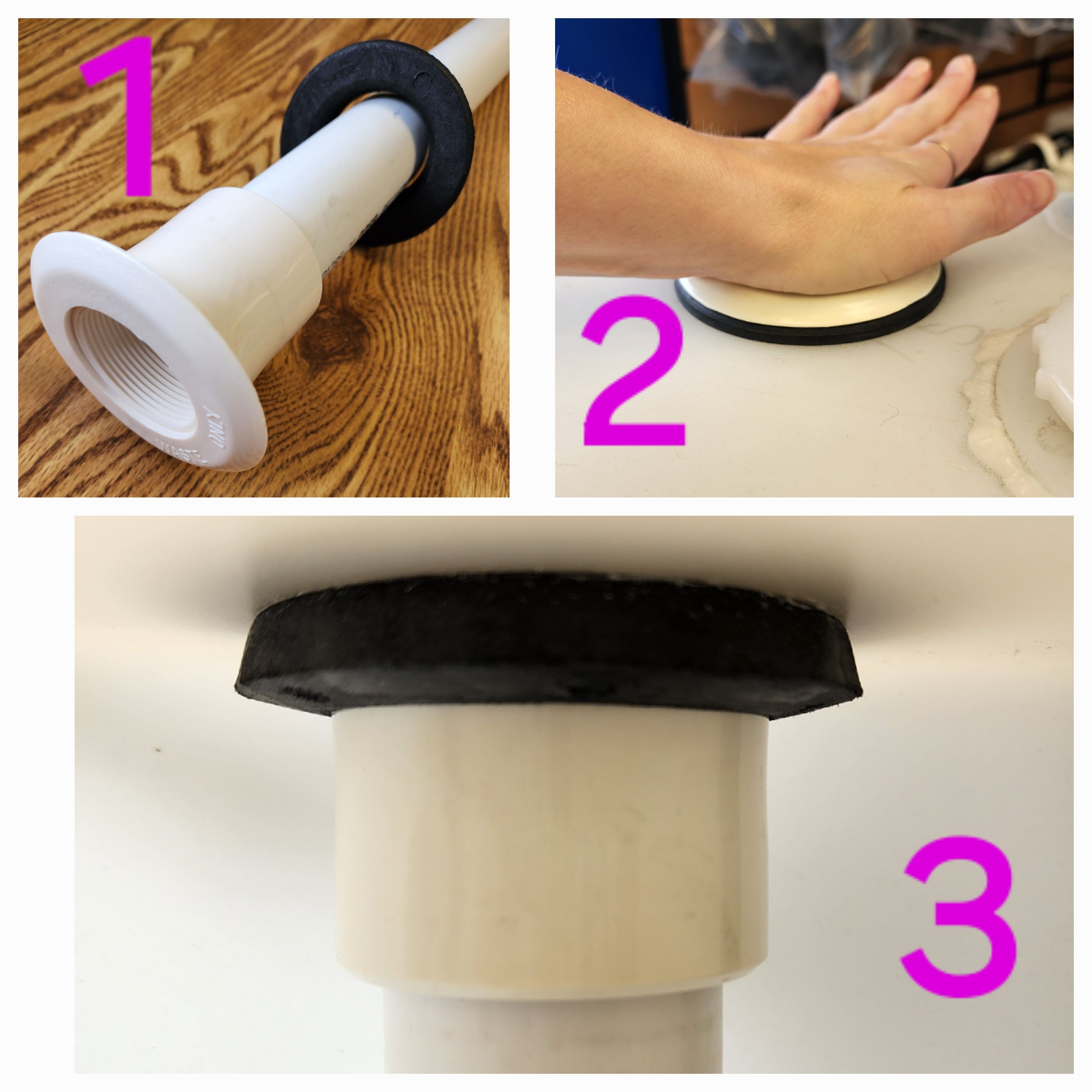

A stand pipe is installed in the top of the tank through a grommet that creates a leak proof seal. The pipe reaches the bottom of the tank to ensure a more efficient evacuation of the holding tank. The 1.5" FPT (female pipe thread) flange on the top of the assembly accepts an 1.5" MPT (male pipe thread) x Hose Adapter or PVC Adapter to best suit your discharge line needs.

This Kit Includes:
