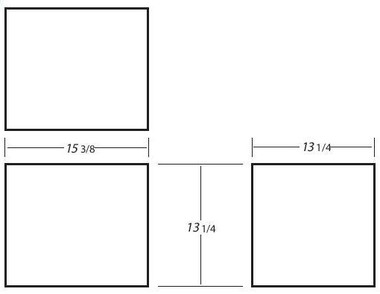

Key for viewing the 3D tank diagram

Top
Bottom
Front
Back
Left
Right

Diagram preview notes:

  • All measurements entered are to the center of the fitting. If you choose 1”, the fitting will be placed as close to the edge as possible.

  • Colored dots on the tank are only for visual reference and may not appear as the measurement you select.

  • Fittings will be installed by the inch reference you provide.

Dometic
SKU/Product #: 322721012 - 322721024

HTS-T 10 Gallon

HTS systems are exempt from any free freight promotions
$1,106.39
$1,843.99
Special Order Item

This is a Special Order Item. It will ship directly from the manufacturer in approx 4-6 weeks

Shipping: Calculated at Checkout

Product Description

HTS-T and Basic Series SeaLand Holding Tank Systems:

  • HTS-T models include T series discharge pump
  • Corrosion-proof, Leak-proof, Odor-proof -High-density Polyethylene tank construction
  • "Diptube-style" discharge fittings for thorough, leak-proof pump-out
  • All components pre-plumbed, pre-tested
  • Easy to install - no solvant-bond connection required
  • ISO/USCG compliant tanks


10 HTS-T
Height: 13.25in. / 635mm
Width: 19.5in. / 495mm
Length: 23.375in / 594mm

Capacity: 10gal / 38 liters
Empty Weight: 18lbs / 8.2kg
Max Weight: 98lbs / 40.9kg
Outlets: 2
Vent Filet: Not Included

Electrical

Discharge Pump-

Power Draw (avg):
6amps / 12 V DC
3amps / 24 V DC

Circuit Breaker/Fuse:
10amps / 12 V DC
5amps / 24 V DC

DTM04 Tank Monitor-

Power Draw (avg):
0.15amps / 12 V DC
0.09amps / 24 V DC

Circuit Breaker/Fuse:
1amp / 12 V DC
1amp / 24 V DC


HTS-T systems are exempt from online shipping promotions





Warning: This item may contain ingredients that are listed under P65warnings.ca.gov
