Dometic
SKU/Product #: 385311694-385311695

MasterFlush 8100/8600/8900/4800 Seat & Lid

Seat assemblies are exempt from any free freight promotions
$147.74 - $171.74
Shipping: Calculated at Checkout

Product Description

Wood Seat & Lid assembly for Models 4800 VacuFlush & 8100/8600/8900/8800 MasterFlush toilets. Provided in White or Bone (Old part number 385880001)

15" x 14-5/8"

Hinge Spacing: 6.25"

Slow Close Options are Plastic (internal hinges)

This part number replaces part number 385311383 and 385880001

SLOW CLOSE Helpful Installation Tips:

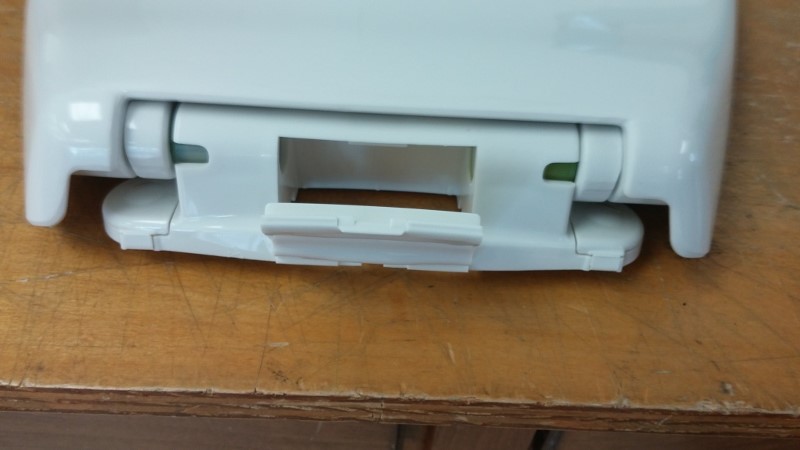

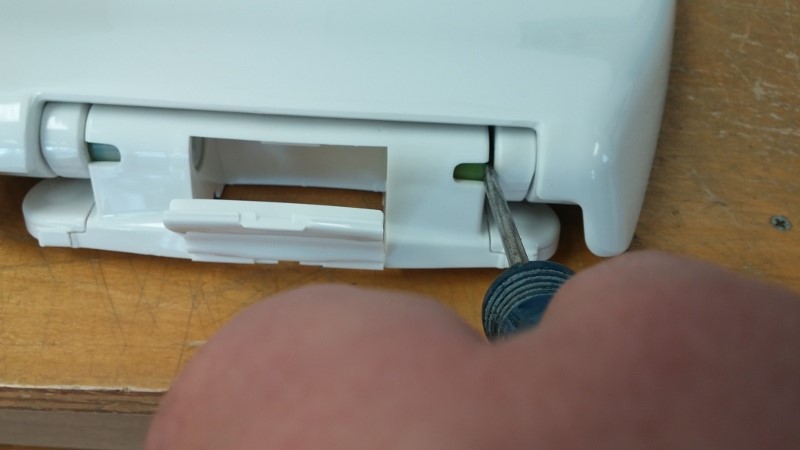

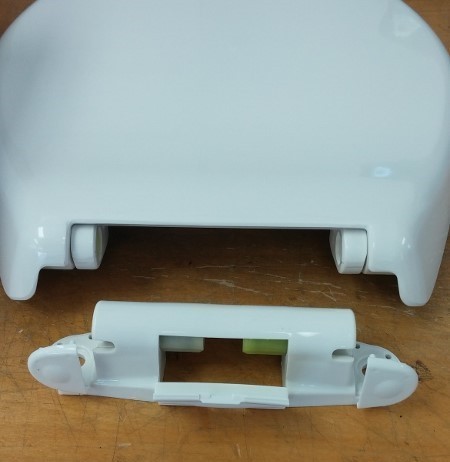

STEP 1: Remove the hinge from the seat & lid assembly. You will need to install the hinge onto the toilet first. Remove the hinge by taking a screw driver and carefully popping the locking pins away from the seat & lid.






STEP 2: Install the hinge portion to the toilet, with the plastic screw and wing nut provided. (NOT PICTURED)

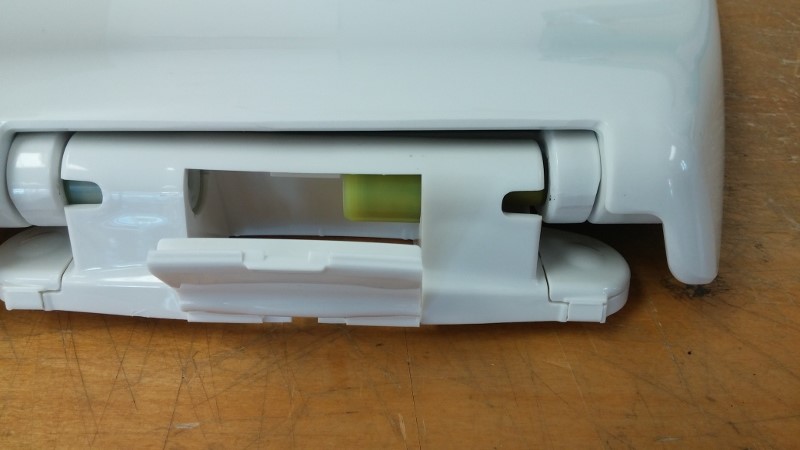

Step 3: Place the seat and lid portion onto the hinges and pop the pins into place (this can be a bit tricky... don't give up. You may need to wiggle and wobble the assembly slightly to "seat" them into place)



Seat assemblies are exempt from any free freight promotions... Click here to see exemption details



Warning: This item may contain ingredients that are listed under P65warnings.ca.gov
