Dometic
SKU/Product #: 304894020

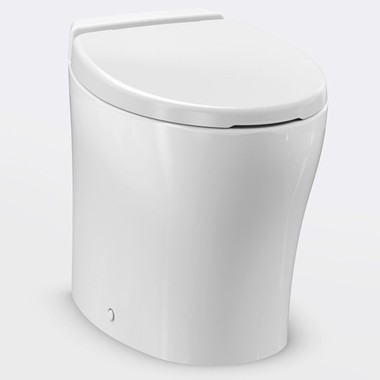

MasterFlush 8940, Tall

Toilets are exempt from any free freight promotions.
$1,489.40
$2,222.99

Shipping: Calculated at Checkout

Product Description

One luxurious look with many designer-friendly options, with a Slow Close Seat and Lid assembly.

Dometic 8900 series toilets provide an abundance of features to satisfy diverse owner preferences and meet virtually any boat builder requirement. The contemporary shape features a compact footprint to fit in most any head compartment. 8900 series toilets come in low-profile and standard-height units. Discriminating owners may choose from additional options: toilet or toilet/bidet combination unit; standard hinge or soft-close seat; white or bone colors.

Dometic 8900 series macerator toilets offer two flush settings to help manage water use. The Normal flush setting consumes 3.2 liters of water and adds a small amount of water to the bowl after every flush, and Rough Sea flushing uses only 1.7 liters per flush and does not add water to the bowl.

The ceramic styling of the Dometic 8900 series matches that of Dometic highly popular 4800 series VacuFlush toilets. This advantage provides boat designers the added ability to offer choices in toilet technology across all boat model lines without altering the decor or floor plans of the baths.

TOILET SPECS:

General
SKU number 9600015504
Model 8940
Model on label 8940
Product Description Electric macerator toilet, standard height, 12v or 24v
Dimensions
Dimensions product depth 18.625" "
Dimensions product height 18.25" "
Dimensions product width 14.75" "
Net weight 35.50 lbs
Rough In Dimensions 15.75 Inch Minimum
Electrical
Input voltage (DC) 12v or 24v
Additional
Color White
Flush Method Electric Wall Switch
Bowl Material Ceramic
Base Material Ceramic
Seat Height 18.625"
Seat Type Plastic
Seat Close Slow close
EAN-13 0713814269555
Dimensions parcel depth 28" "
Dimensions parcel height 24" "
Dimensions parcel width 19" "
Parcel weight 43.75 lbs



8900 Series Masterflush Users Guide

8900 Series Masterflush Installation Guide

8900 / 8600 Wiring
