Dometic
SKU/Product #: 4

Outlet Elbow Option for select VacuFlush Bases

$29.56
$34.78
See description for compatibility
Shipping: Calculated at Checkout

Product Description

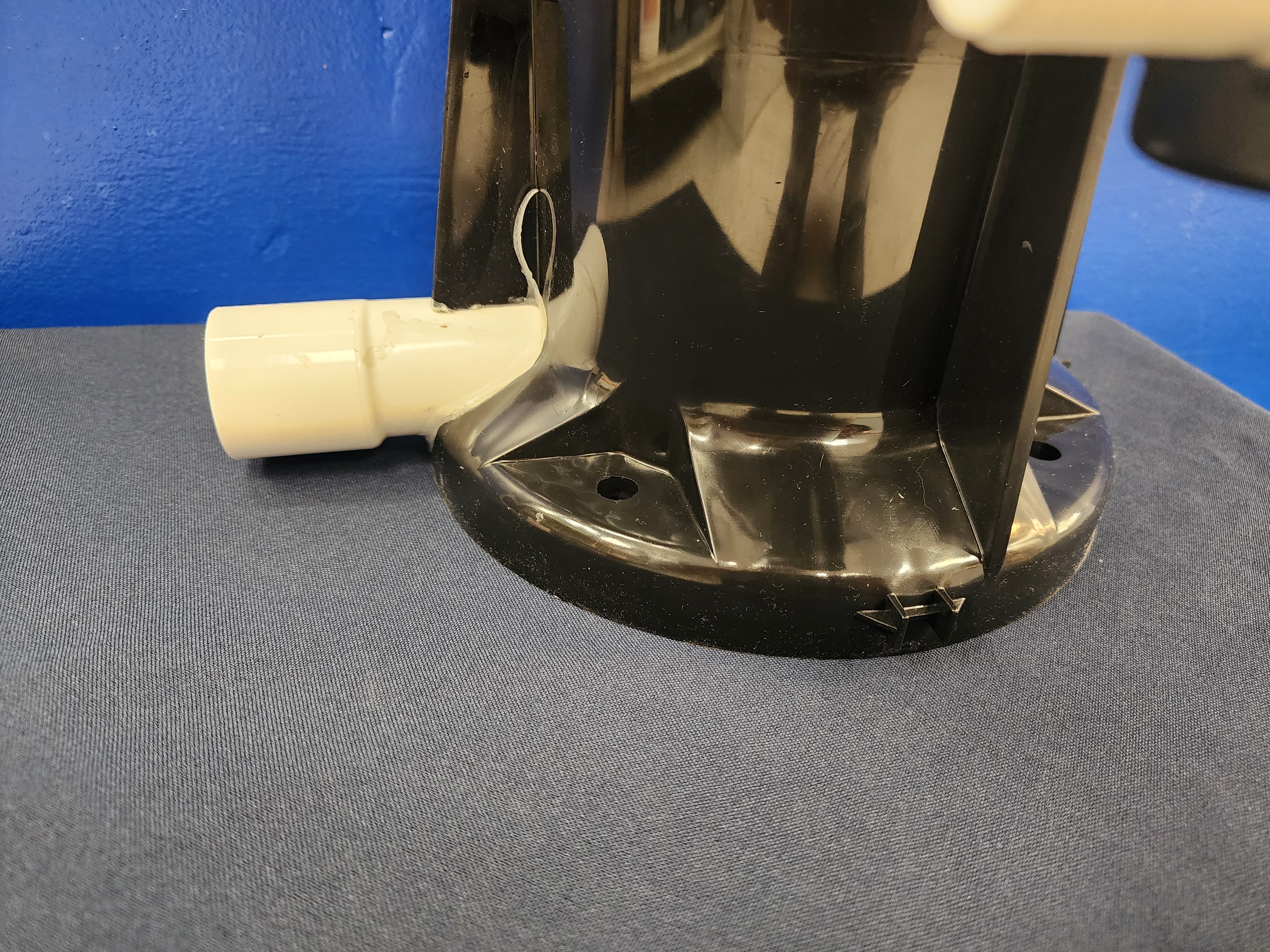

VacuFlush Base Outlet Elbow option with the reducing ring. This kit is designed to go on the 4-bolt base that discharge above the floor. The reducing ring fits over the existing outlet hose adapter to create a 90° off the toilet, if you need it to discharge in a different direction. -PVC Primer & Cement Required. Note: Please let sit for 4+ hours to dry before placing under vacuum.

This optional elbow works with the 4-Bolt Base :

DOES NOT WORK WITH THE ECO BASE:

Warning: This item may contain ingredients that are listed under P65warnings.ca.gov
