500 Series VacuFlush
Marine Sanitation is allowed to sell complete VacuFlush units to:
Washington, Oregon, Montana, Wyoming, Idaho & Alaska
Contact us for a quote! 206-633-1110 or Info@marinesan.com
VacuFlush 500 Series marine toilet deliver all the benefits of a VacuFlush sanitation system to a wide range of boat installations.
- Deep Bowl and Adult-size Wood Seat - Offers residential comfort in many marine heads, while being compact in overall size.
- Three Heights Available - The rang of toilet heights accommodate standard or limited installation spaces.
- Low Water Consumption - Flushes on as little as .47 liters of water per flush, greatly extending holding tank use.
- No Odors - Freshwater flushing eliminates seawater odors. Powerful vacuum flushing action clears contents from the bowl immediately.
- Sparkling, High-Fired Ceramic Bowl - Easy-to-Clean vitreous china bowl provides many years of beauty.
- Integral Water Link Check Valve - Provides anti-siphon protection in freshwater systems.

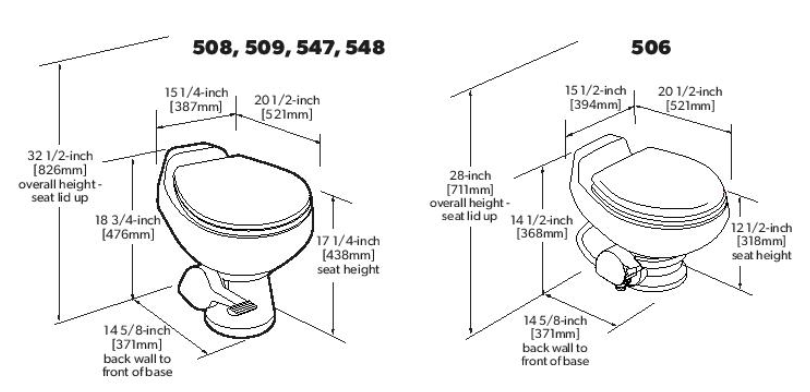

| MODEL | DESCRIPTION | DISCHARGE | WEIGHT |
| 506 | Low-Profile (4 bolt) | Through the floor* | 40 lbs / 18.1 kg |
| 508 | Standard Height (4 bolt) | Through the floor* | 41 lbs / 18.6 kg |
| 547 | Standard Height (4 bolt) | Above the floor, Right | 41 lbs / 18.6 kg |
| 548 | Standard Height (4 bolt) | Above the floor, Rear | 41 lbs / 18.6 kg |
REQUIREMENTS:
| ELECTRICAL |
Vacuum pump* draw = 6amps/ 12 V DC; 3 amps/24 V DC Vacuum pump* circuit beaker/fuse = 10 amps/12 V DC: 5 amps/24 V DC |
| WATER SUPPLY |
ID = 0.5" NPT fitting Flow rate = 2.0 mpg/7.6 Imp at toilet, minimum |
| DISCHARGE |
ID = 1.5 in./38mm ID plumbing Horizontal run** = 50 ft./15m maximum to vacuum source Vertical run** = 6 ft./1.8m maximum to vacuum source |
| REQUIRED COMPONENT |
Vacuum source = VacuFlush Vacuum Generator, Vacuum Holding Tank, or Holding Tank System |
If you are looking for parts for the 500 series, follow this link to the parts diagram pages.
VacuFlush systems are not available for online ordering. Please call or visit our showroom with any questions and orders.
500 Series: Home Comfort Vacuflush Toilets; Elongated hush flush seat and deep, household size ceramic bowl offers premium user comfort. Anti splash rim keeps water in.
