Product Description

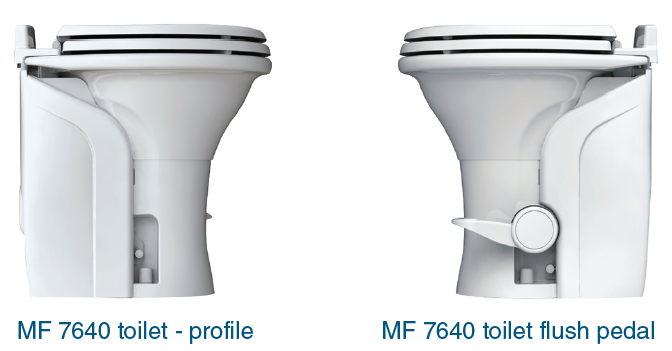

MasterFlush® 7640 RV Toilet
Pedal-operated macerator toilet offers RV-friendly style, performance
7640 RV MasterFlush Series toilets have many benefits:
- Powerful macerating flush
- Familiar RV toilet appearance and user operation
- Two flush modes: Normal (0.67 gal / 2.54 l per flush) and Low (.17 gal / .64 l per flush)
- Reduces bathroom odor - no more toilet bowl opening to waste tank
- Sparkling ceramic bowl is easy to clean
- Swirl-Jet action assures powerful, more thorough rinsing of entire bowl
- Most comfortable RV toilet height
- Easy, direct replacement for gravity flush RV toilets - mounts to existing floor flange
- Allows toilet to be installed away from holding tank; not locked into direct-over-waste-tank installation
- Macerated effluent is more easily, more thoroughly discharged from tank
- Great for towables or motorhomes with (2) bathrooms
- Uses proven MasterFlush macerator pump technology
- Push pedal slightly to add water; eliminates overfilling waste tank
- "Full" tank shutdown prevents overfilling waste tank
- Self-contained unit - no additional flush switch to install
| Electrical | Power Draw | 15 amps @ 12v DC |
| Circuit Breaker/Fuse | 20 amps @ 12v DC | |
| Wiring | refer to gauge guide below | |
| Water Supply | Supply Hose ID, fitting | .5" NPT |
| Flow Rate |
2.0 gpm/7.5 lmp minimum at toilet 3-5 gpm/11.4-18.9 recommended |
|
| Discharge | Option 1 | 3"/76mm ID flange directly above holding tank |
| Option 2 |
1.5"/38mm ID sanitation hose up to 40ft/12.2m to waste tank |
