5000 Series VacuFlush -Most Popular

Marine Sanitation is allowed to sell complete VacuFlush units to:

Washington, Oregon, Montana, Wyoming, Idaho & Alaska

Contact us for a quote! 206-633-1110 or Info@marinesan.com





If you need parts for your 5000 series VacuFlush toilet, follow the link to VacuFlush parts & diagrams

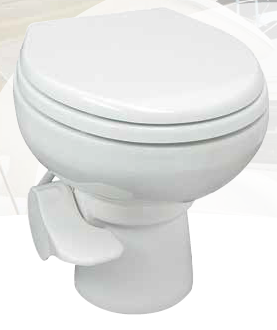

VacuFlush 5000 Series marine toilet deliver all the benefits of a VacuFlush sanitation system to a wide range of boat installations.

• Deep Bowl and Adult-size Wood Seat - Offers residential comfort in many marine heads, while being compact in overall size.
• Three Heights Available - The rang of toilet heights accommodate standard or limited installation spaces.
• Low Water Consumption - Flushes on as little as .47 liters of water per flush, greatly extending holding tank use.
• No Odors - Freshwater flushing eliminates seawater odors. Powerful vacuum flushing action clears contents from the bowl immediately.
• Sparkling, High-Fired Ceramic Bowl - Easy-to-Clean vitreous china bowl provides many years of beauty.
• Integral Water Link Check Valve - Provides anti-siphon protection in freshwater systems.

5000 Series VacuFlush Models:

MODEL	DESCRIPTION	DISCHARGE	WEIGHT
5006	Low-Profile (4 bolt)	Through the floor*	27 lbs / 12.2 kg
5009	Standard Height (4 bolt)	Through the floor*	28 lbs / 12.7 kg
5047	Standard Height (4 bolt)	Above the floor, Right	28 lbs / 12.7 kg
5048	Standard Height (4 bolt)	Above the floor, Rear	28 lbs / 12.7 kg
5049	Standard Height (4 bolt)	Above the floor, Left	28 lbs / 12.7 kg
5146	Medium Height (2 bolt)	Through the floor*	28 lbs / 12.7 kg
5147	Medium Height (2 bolt)	Above the floor, Right	28 lbs / 12.7 kg
5148	Medium Height (2 bolt)	Above the floor, Rear	28 lbs / 12.7 kg
5149	Medium Height (2 bolt)	Above the floor, Left	28 lbs / 12.7 kg



DIMENSIONS:

4-Bolt

2-Bolt

4-Bolt

REQUIREMENTS:

ELECTRICAL	Vacuum pump* draw = 6amps/ 12 V DC; 3 amps/24 V DC Vacuum pump* circuit beaker/fuse = 10 amps/12 V DC: 5 amps/24 V DC
WATER SUPPLY	ID = 0.5" NPT fitting Flow rate = 2.0 mpg/7.6 Imp at toilet, minimum
DISCHARGE	ID = 1.5 in./38mm ID plumbing Horizontal run** = 50 ft./15m maximum to vacuum source Vertical run** = 6 ft./1.8m maximum to vacuum source
REQUIRED COMPONENT	Vacuum source = VacuFlush Vacuum Generator, Vacuum Holding Tank, or Holding Tank System

VacuFlush systems are not available for online ordering. Please call or visit our showroom with any questions and orders.
5000 Series: Compact, versatile VacuFlush toilet; Large household size bowl with shallow front-to-back footprint delivers installation ease and user comfort for all boat sizes.
