Tecma Silence PLUS 2G w/ Panel

Toilets are exempt from any free freight promotions.
Sale Price $1,630.50
Product#: 98348-98349
Shipping:
Calculated at Checkout

Silence Plus 2G Short

The Silence Plus 2G Short is the short version of the Silence Plus 2G, the 'big bowl' model of the Flexi-Line. The short model is designed to be installed on a raising step, usually 10 cm/ 3.9 inches high. For this purpose the height of the ceramic shell is reduced to 36 cm/ 14.2 inches to compensate and match the standard seating height of 46 cm/ 18.1 inches.

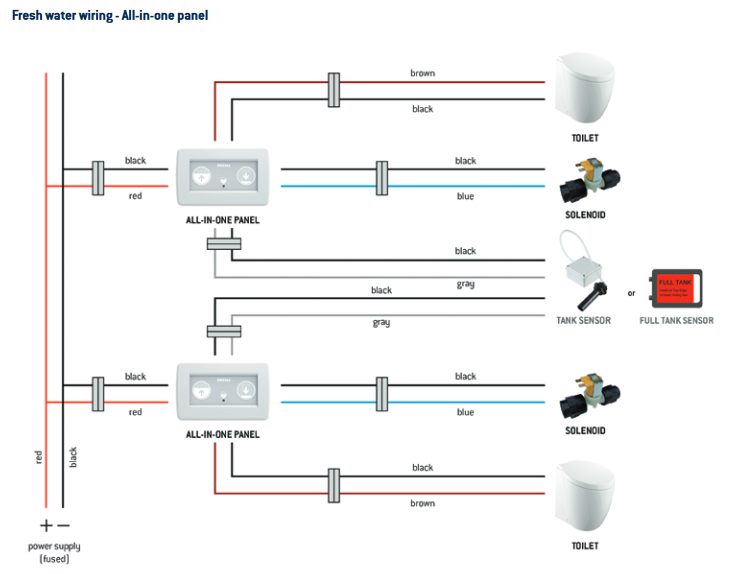

Fresh water wiring:

Raw Water Wiring:

Owners Manual

Installation Manual



Silence Plus 2G

The Silence Plus 2G is the 'big bowl' model of the Flexi-Line, and forms the foundation for the Flexi Line. With the same features, the new design and the new 2nd Generation System Improvements, the Silence Plus 2G is supremely effective and comfortable. The length of 51 cm / 20.1 inches creates the at-home seating feeling.


Toilets are exempt from any free freight promotions... Click here to see exemption details



Technical Specs:

Weight Short Tall
  23.5kg / 51.8lb 25.5kg / 56.2lb




Inlet Solenoid 12v dc 24v dc 110-125 ac 220-240 ac
Power consumption 9.5 W 10 W 6 W 6 W
Working pressure recommended 3 bar 3 bar 3 bar 3 bar
Solenoid inlet and outlet (threaded female) 1/2"
Toilet inlet hose (barbed) 1/2"






Inlet Pump 12v dc 24v dc
Fuse 8 A 4 A
Pressure 45 PSI - 3 bar
Water flow 12 L/min 3.17 gpm
Toilet inlet hose (barbed)




Outlet Pump 12v dc 24v dc 110-125 ac 220-240 ac
Fuse recommended 40A 30A 8A 5A
Pump performance Max 270 l/min 71.3gm
Max vertical head 11mt 36.1ft
Max horizontal distance 90mt 295.3ft

Outlet Duck Bill Valve (male) 1.5" / required ID 1.5" (38.5mm)
