Key for viewing the 3D tank diagram

Top
Bottom
Front
Back
Left
Right

Diagram preview notes:

  • All measurements entered are to the center of the fitting. If you choose 1”, the fitting will be placed as close to the edge as possible.

  • Colored dots on the tank are only for visual reference and may not appear as the measurement you select.

  • Fittings will be installed by the inch reference you provide.

Thetford
SKU/Product #: 98122

Tecma Silence Touch2 Control Panel

$737.21
$867.31

This Item Is Currently On Back Order. Pre-Ordered items cannot be purchased internationally.

Shipping: Free Shipping

Product Description

Control Panel, Touch2 (new part #T-PF.P11T2)

Supplied with the options for a white or black (special order) frame.

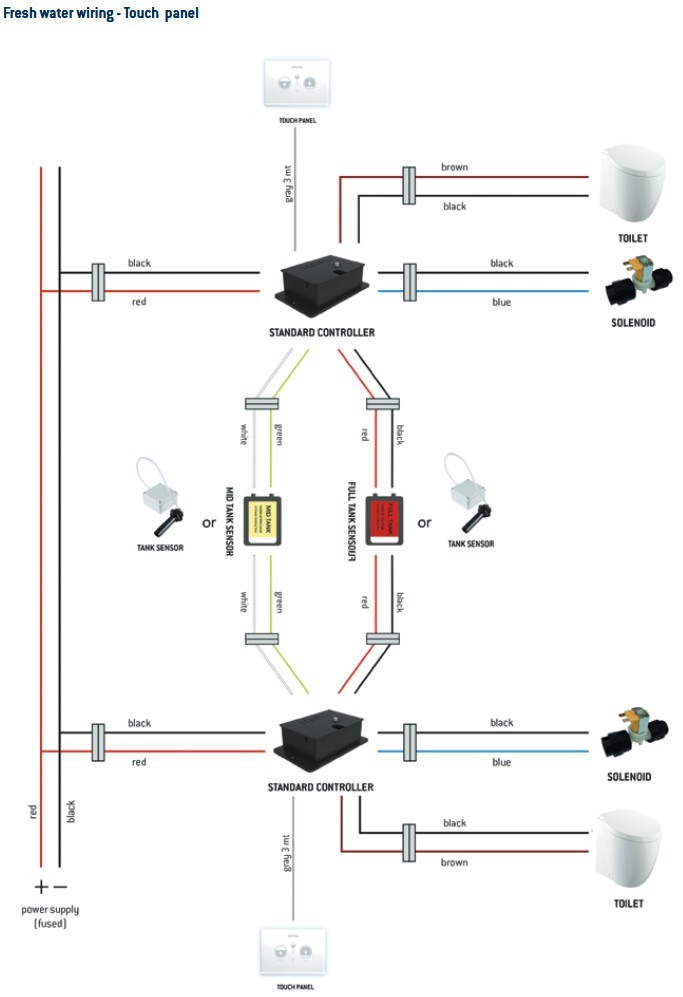

Fresh Water Wiring:









Warning: This item may contain ingredients that are listed under P65warnings.ca.gov
