Thetford
SKU/Product #: 38072

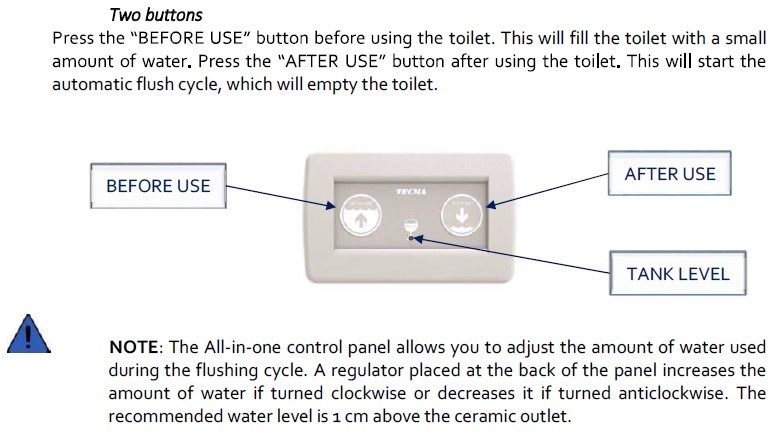

Tecma Silence Control Panel, 2-button

$230.00
$294.24
Shipping: Free Shipping

Product Description

Control Panel, 2-button (38072B new part # T-PF.P11) ((raw part # 38070))

Supplied with the options for a white or black frame.

  • NOTE: If you are replacing your RV Panel with this 'all in one' 2 Button panel...
  • You would remove your existing panel AND controller.  The new panel would hard wire directly to the power, solenoid and toilet (blue and black to solenoid, brown and black to macerator, red and black from boat power).



Fresh Water Wiring:

Raw Water Wiring:
