Complete list 52 to 130 gallon
Sewage holding tanks (black water), Water storage tanks (potable water) and Gray water tanks (showers, sinks etc.) start blank. They are made from prefabricated molds and can be placed in any configuration for Length, Width & Height. Fitting placement, sizes and orientation are up to you.
To customize your tank fittings, click on the tank number to launch our custom software to order online. If you would like to order a tank with us in "person", you can print or download this TANK ORDER FORM and email or fax it to us. We will contact you once we are able to take a look. Email orders to: Info@marinesan.com or fax us at: 206-633-0317
All tanks take approximately 20 business days to ship
|
If you know your max dimensions, but are unsure of the capacity you're looking for... Length x Width x Height / 231 = your tank capacity (give or take a few gallons) Shapes: "R" = Rectangle - "R/O" = Rectangle/Odd - (click the blue tank # to see the R/O shape. Odd shaped tanks are not available online) |
The dimensions are indicated in inches and are calculated as exact as possible. However, due to the nature of the Roto-Molding process and the physical properties of plastic, a slight swelling and shrinking may occur. Please keep this in mind if your project demands close tolerances. There is no Height, Width or Length noted on this list since the holding tanks start bank and can lay in any configuration you need. |
Holding Tanks Are Exempt From Any Free Shipping Promotions
| TANKS 52-130 | GAL | DIMENSIONS | SHAPE | ||
| B315 | 52 gal | 30.5" | 24.375" | 17.375" | R |
| B133 | 53 gal | 57" | 26.5" | 9.25" | R |
| B312 | 53 gal | 72" | 15" | 13" | R |
| B545 | 53 gal | 30" | 22" | 20.5" | R |
| B528 | 55 gal | 34.375" | 28.5" | 14.625" | R |
| 42W | 58 gal | 46.75" | 20.75" | 15.5" | R |
| 43W | 58 gal | 58" | 20" | 13" | R |
| 44W | 58 gal | 34" | 34" | 13" | R |
| 60W | 58 gal | 44" | 22" | 15.5" | R |
| 63W | 58 gal | 42" | 23" | 15.5" | R |
| 54W | 60 gal | 36.25" | 30.25" | 14.25" | R |
| 59W-odd | 60 gal | 40" | 25" | 15.5" | R/O |
| B242 | 60 gal | 32" | 23.75" | 20.5" | R |
| B508 | 60 gal | 48" | 25" | 13" | R |
| B543 | 60 gal | 55" | 20" | 14" | R |
| B244-odd | 62 gal | 30" | 27.5" | 18.875" | R/O |
| B307-odd | 64 gal | 45" | 23" | 15.75" | R/O |
| B248 | 65 gal | 48" | 20" | 17" | R |
| B283 | 65 gal | 39.125" | 30.875" | 13.5" | R |
| B292-odd | 65 gal | 48" | 23" | 15.5" | R/O |
| B297 | 65 gal | 28" | 25" | 24" | R |
| B324 | 65 gal | 37" | 30" | 15" | R |
| B434 | 69 gal | 26" | 26" | 26" | R |
| B444 | 69 gal | 38" | 26" | 18" | R |
| B296 | 70 gal | 34" | 23" | 23" | R |
| B401 | 70 gal | 34" | 30" | 18" | R |
| B531 | 71 gal | 63.25" | 23.125" | 12.5" | R |
| 61W | 75 gal | 54" | 22" | 16" | R |
| B516-odd | 75 gal | 58" | 20" | 18" | R/O |

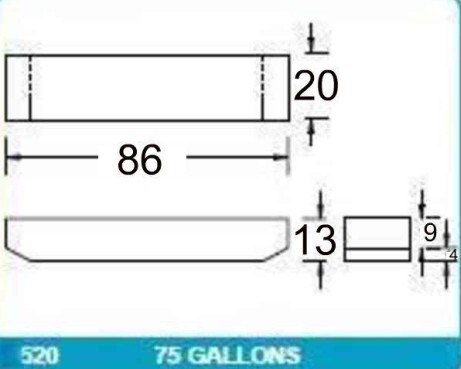

| B520-odd | 75 gal | 86" | 20" | 13" | R/O |
| B230 | 80 gal | 68.5" | 27" | 11" | R |
| B260 | 80 gal | 44.625" | 22" | 20.5" | R |
| B282-odd | 80 gal | 50.875" | 20.875" | 20" | R/O |
| B299 | 80 gal | 76" | 28" | 10" | R |
| B327 | 80 gal | 48" | 24" | 18" | R |
| B363 | 80 gal | 39.5" | 31.5" | 16.75" | R |
| B458-odd | 80 gal | 62.25" | 25.25" | 12.625" | R/O |
| 64W | 86 gal | 39.25" | 39.25" | 14.25" | R |
| B204 | 90 gal | 76" | 27" | 11.5" | R |
| B314 | 90 gal | 34" | 32" | 21" | R |
| B387 | 92 gal | 72" | 33" | 10" | R |
| B483 | 92 gal | 53" | 31" | 14.25" | R |
| 66W | 93 gal | 67" | 22" | 16" | R |
| B259 | 95 gal | 71.5" | 26" | 13" | R |
| B354 | 95 gal | 47" | 33" | 16" | R |
| B487 | 97 gal | 63" | 40" | 10" | R |
| B477 | 98 gal | 35" | 27" | 26" | R |
| B530 | 98 gal | 44" | 25" | 23" | R |
| B249-odd | 100 gal | 50.25" | 24.5" | 20.875" | R/O |
| B426-odd | 100 gal | 48" | 34" | 15" | R/O |
| B455 | 100 gal | 44" | 24" | 24" | R |
| B261-odd | 105 gal | 45" | 37" | 22.125" | R/O |
| B427 | 105 gal | 39" | 26" | 26" | R |
| B298 | 110 gal | 76" | 24" | 15.5" | R |
| B391 | 110 gal | 95" | 33" | 9" | R |
| B433 | 110 gal | 48" | 24.5" | 24" | R |
| B328 | 115 gal | 39.5" | 28" | 26" | R |
| B466 | 115 gal | 54" | 27" | 20" | R |
| B243-odd | 125 gal | 53.5" | 30" | 18.5" | R/O |
| B247 | 125 gal | 43.125" | 29.875" | 24" | R |
| B356 | 130 gal | 60" | 30" | 18" | R |
| B467-odd | 130 gal | 41.5" | 29.25" | 27" | R/O |
