Dometic
SKU/Product #: VacuFlush-Pump-Kit-VG4

VacuFlush Pump Repair Kit, VG4 (JW,JS): Bellows, 2"DB's, 8-Bolt Style

$183.40
$241.98
Shipping: Calculated at Checkout

Product Description

This maintenance kit includes everything needed to rebuild your pump (minus motor) to make it run like new.

This kit rebuilds:

VG4 -Pump part number: 317780012 (12v), 317780024 (24V)

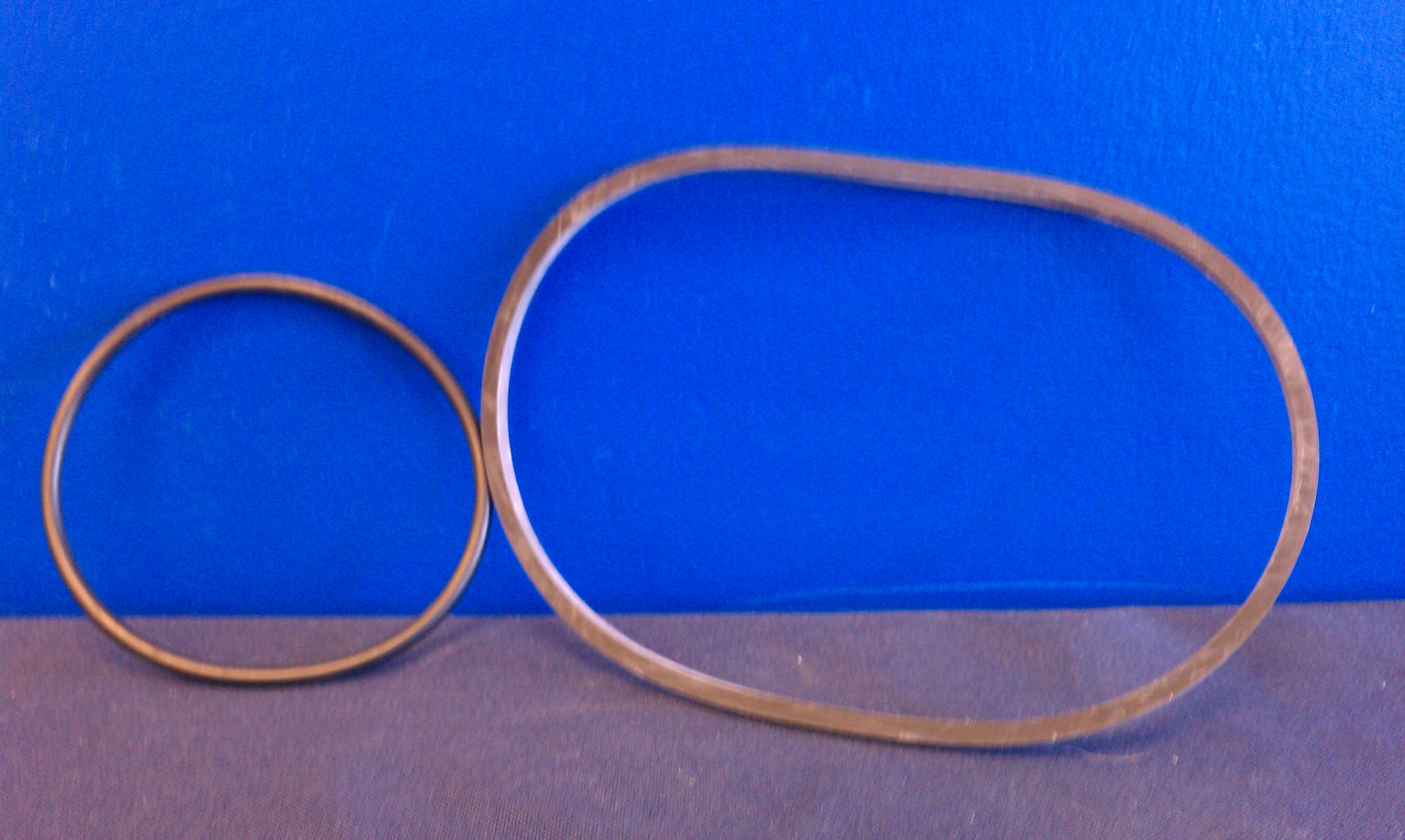

This VacuFlush pump kit includes:





If you are looking for the kit for the S-Series black vacuum pump that takes the 1.5" duckbills - Click Here



NOTE: Please be aware of Knock-Off Bellows being sold by companies that are not affiliated with Dometic. They will not fit Dometic pumps. They are too tall, too thin and are not sealed to create or hold vacuum. Here is the comparison of the Dometic Bellows vs the Knock-Off.




Bellows Installation Tips:
STEP 1: Make sure the o-ring is INSIDE the top lip of the bellows!!


STEP 2: Snap the bellows into place by squeezing the bellows and the pump top together.

STEP 3: The o-ring should not be visible from the side view. It will be sealing the bellows opening to the pump top inside the bellows lip itself.


STEP 4: Clamp the bellows onto the lid. The flat side of the clamps should be up, against the lid.
