Dometic
SKU/Product #: Vacuflush-System-Repair-Kit

VacuFlush System Repair Kit

$155.50 - $185.00
Shipping: Calculated at Checkout

Product Description

This kit includes...

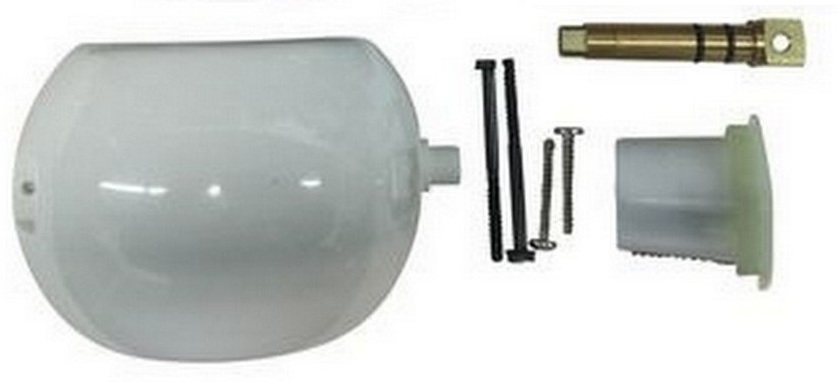

(1ea) Toilet Ball / Shaft & Spring Cartridge Kit -SPECIFY STYLE IN THE OPTIONS DROPDOWN
1.5" Duckbills or 2" Duckbills -SPECIFY STYLE IN THE OPTIONS DROPDOWN

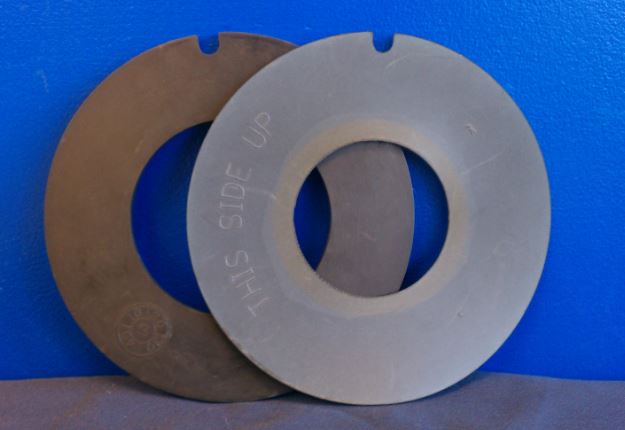

(1ea) Toilet Bowl Seal Kit -Pedal Flush VacuFlush



BALL / SHAFT & SPRING CARTRIDGE OPTIONS:

SELECT ASSEMBLY OPTION: "Eco Ball / Shaft" if you have an all plastic pedal.

(385310954) Eco Ball / Shaft Installation Instructions

SELECT ASSEMBLY OPTION: "Standard Ball / Shaft" if you have a metal lever with a plastic cover.

(385318162) Ball / Shaft Installation Instructions

DUCKBILL OPTIONS:

SELECT ASSEMBLY OPTION:  "1.5" Duckbills" if you have a black vacuum pump. (385310076)

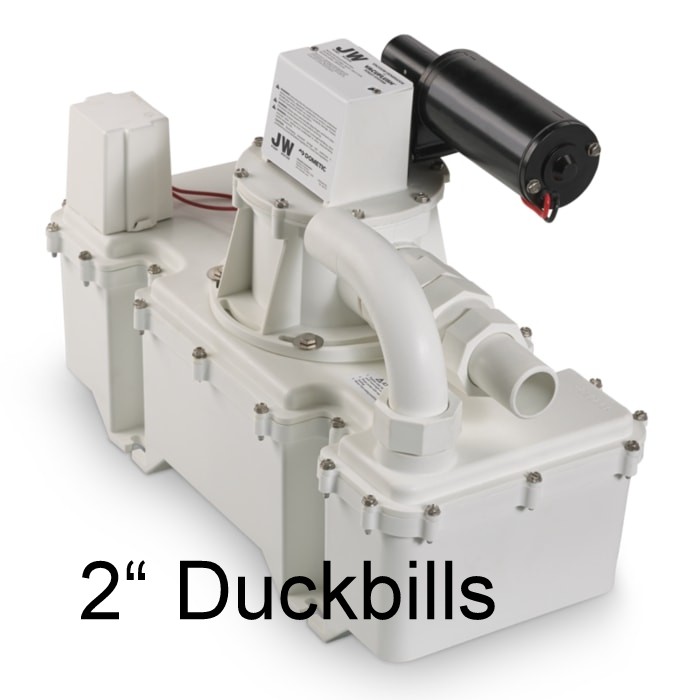

SELECT ASSEMBLY OPTION: " 2" Duckbills" if you have the VG4 Vacuum Generator. (385311581)
BOWL SEAL: All left hand pedal flushing vacuflush have the same bowl seal.



Warning: This item may contain ingredients that are listed under P65warnings.ca.gov
